Model LG 580.76129 300 WINDOW AC – Common Parts & Diagrams
Diagram 0
Diagram 1

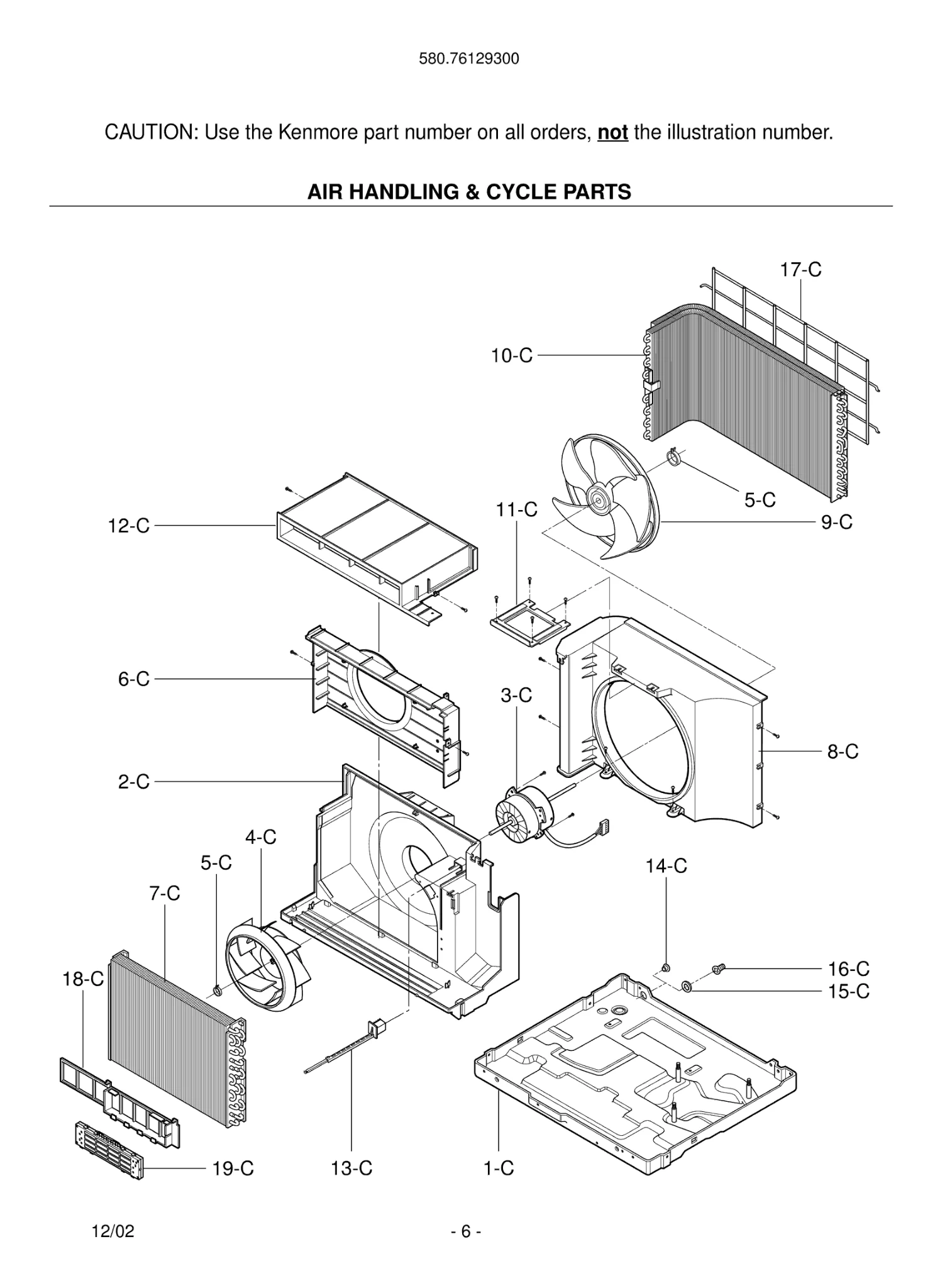

Diagram 2

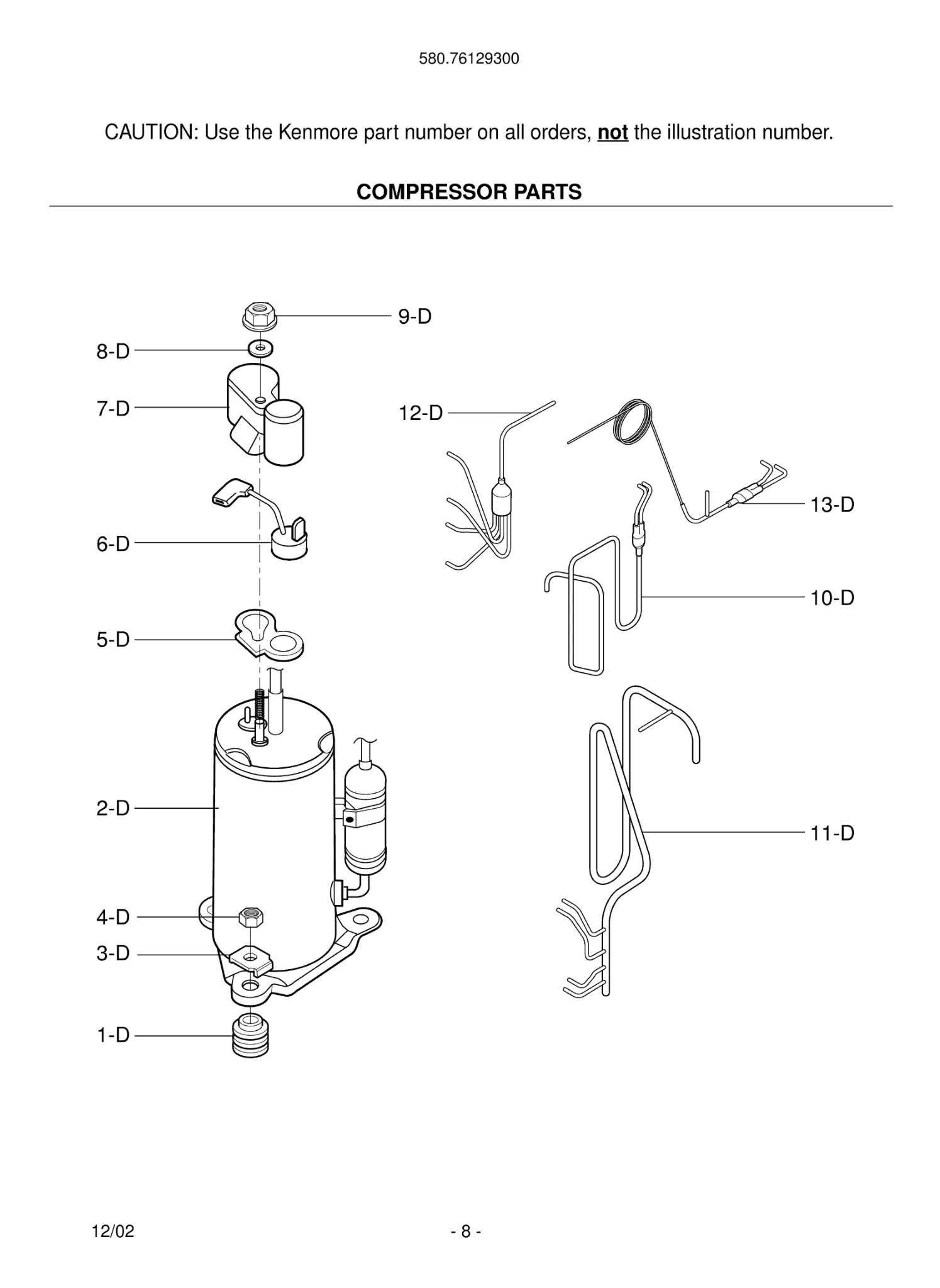

Diagram 3

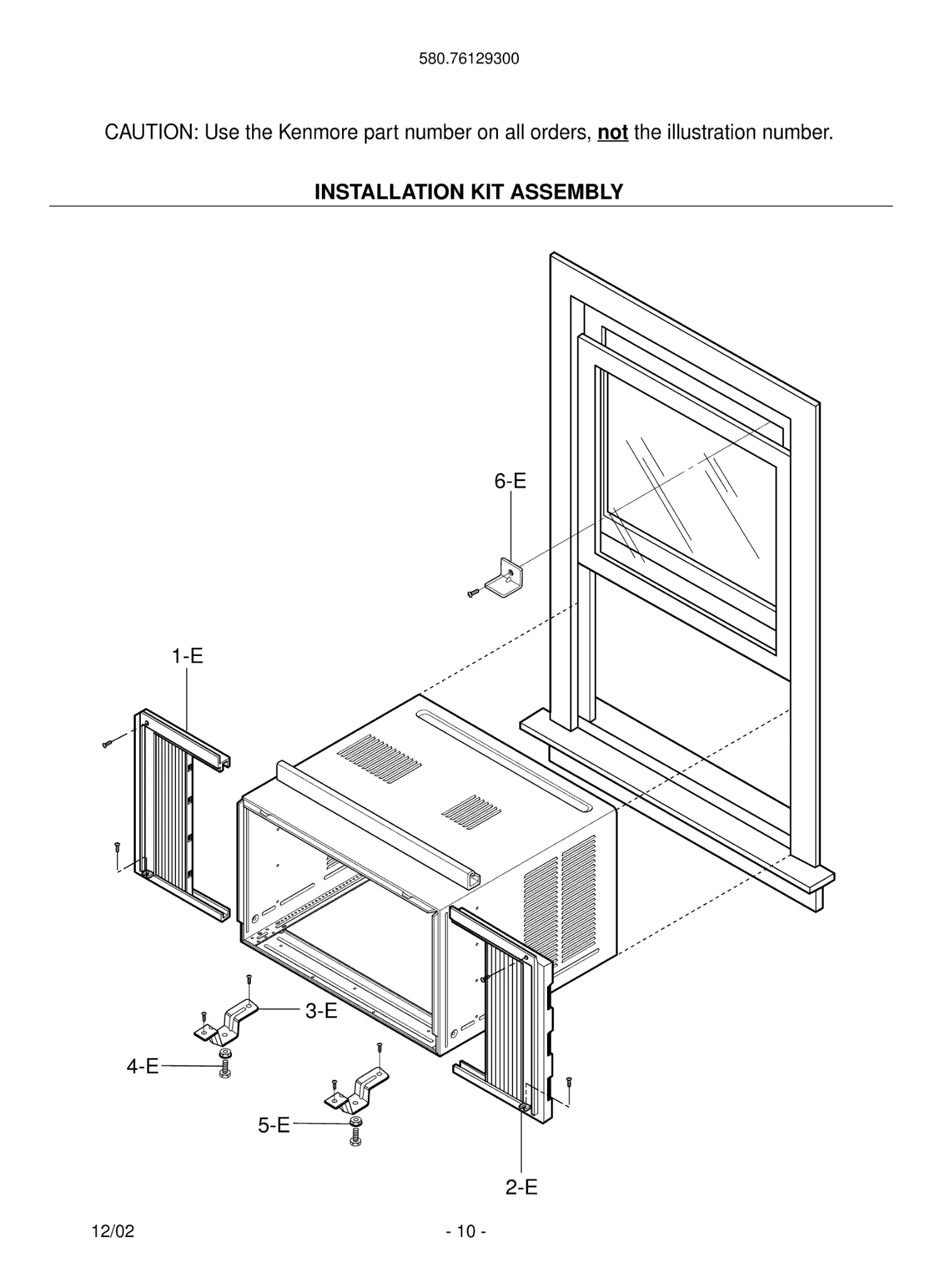

Diagram 4
Common parts from model LG 580.76129 300 WINDOW AC
1-B
CONTROL BOX,SINGLE LGE 4994A10029A Contact Us For Availability
1-C
BASE ASSEMBLY,SINGLE LGE 3041A20020J Contact Us For Availability
1-E
CURTAIN ASSY/REGISTERED TO LW1010ER.AWYAUSH/U LGE 4959AR3402C Contact Us For Availability
2-B
PANEL,CONTROL LGE 3720A10109A Contact Us For Availability
2-C
AIR GUIDE LGE 5238A20008A Contact Us For Availability
2-D
COMPRESSOR SET LGE 2520UKGC2BA Contact Us For Availability
2-E
CURTAIN ASSY/REGISTERED TO LW1010ER.AWYAUSH/U LGE 4959AR3402D Contact Us For Availability
3-A
FILTER ASSEMBLY,AIR CLEANER LGE 5231A20007A Contact Us For Availability
3-B
COVER LGE 3550A30114A Contact Us For Availability
3-C
Package Assembly,C/SKD LGE 3911A30056S Contact Us For Availability
3-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20069J Contact Us For Availability
3-E
BRACKET SILL SUPPORT "WC" FOR LGE 4810AR3240A Contact Us For Availability
4-E
HEXAGON HEAD BOLT M COARSE 1 LGE 1BHD1004006 Contact Us For Availability
5-B
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20319C Contact Us For Availability
5-D
GASKET LGE 4986U-L004A Contact Us For Availability
5-E
HEXAGON NUTS 3 (2DRZ6074 06/2 LGE 1NHC1000006 Contact Us For Availability
6-B
CAPACITOR,DRAWING LGE 0CZZA20001N Contact Us For Availability
7-A
CABINET ASSEMBLY,SINGLE LGE 3091A10032D Contact Us For Availability
7-B
H.V ASSEMBLY LGE 6609A10003Q Contact Us For Availability
7-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20099A Contact Us For Availability
7-D
COVER,TERMINAL LGE 3550U-L005A Contact Us For Availability
8-A
GUIDE UPPER LGE 4974AR3262E Contact Us For Availability
8-B
POWER CORD ASSEMBLY LGE 6411A20011H Contact Us For Availability
8-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
9-A
LABEL,ENERGY LGE 3850A20783G Contact Us For Availability
9-B
THERMISTOR ASSEMBLY LGE 6323A20004D Contact Us For Availability
10-B
CONNECTOR ASSEMBLY LGE 6631AR3843W Contact Us For Availability
10-C
CONDENSER ASSEMBLY,BENT LGE 5403A20042D Contact Us For Availability
10-D
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211AR2930Q Contact Us For Availability
11-C
BRACE LGE 4800A30002B Contact Us For Availability
12-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20388B Contact Us For Availability
13-B
SWITCH ASSEMBLY,MICRO LGE 6601A30002A Contact Us For Availability
13-C
DAMPER,VENTILATION LGE 4900A20002A Contact Us For Availability
13-D
TUBE ASSEMBLY,CAPILLARY LGE 5211AR3332W Contact Us For Availability
14-B
REMOTE CONTROLLER ASSEMBLY LGE 6711A20053B Contact Us For Availability
14-B
Remote Controller Assembly LGE 6711A90027B Contact Us For Availability
14-C
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
15-B
WINDOW,DISPLAY LGE 3790A20020B Contact Us For Availability
17-C
GRILLE ASSEMBLY,REAR(SINGLE) LGE 3530AR2688H Contact Us For Availability
18-C
CASE LGE 3110A20079A Contact Us For Availability
19-C
AIR PURIFYING FILTER LGE 5983A10009K Contact Us For Availability
× ![]()
